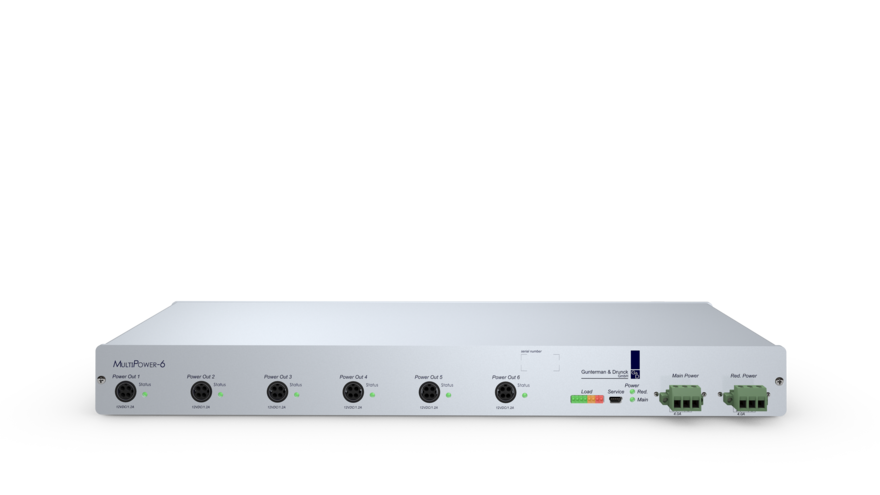

MultiPower-6-24V 6x 12V/1.2A

Item no. A4110045
Back to last view
EOL
discontinued
discontinued
Redundant power supply
Central power supply for 6 12V devices with max. 1.2A each
ask for alternative
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

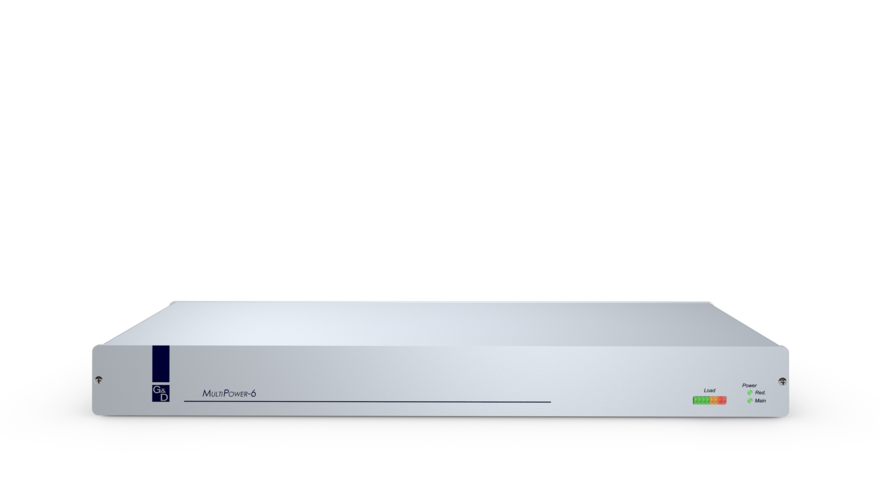

This MultiPower

serves as the central power source of G&D devices that require an external power pack (12V). With the MultiPower, a redundant power supply can be ensured via two power supply units. The MultiPower is a functional, space-saving and secure solution for applications in server rooms or computer racks.

Device
  • Central power supply, for example in racks
  • Enables external monitoring of the device status
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Security features
  • MultiPower-12-HP, MultiPower-12 and MultiPower-6:
    • redundant internal power units
  • 24V variant:
    • redundant external power supply, 3 pin Phoenix connector
      (PowerPacks not included in the scope of delivery)
  • MultiPower-2:
    • redundant external power supply
Operation features
  • MultiPower-12-HP:
    • Connction of up to twelve 12V devices
      (12 output interfaces supply G&D devices with 12V and max. 1,2A – depends on the devices; with port configuration, up to six G&D devices with 12V and max. 2.4A (high power) can be connected)
    • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • MultiPower-12:
    • Connection of up to twelve 12V devices
      (12 output interfaces supply G&D devices with 12V and max. 600mA – depends on the devices)
  • MultiPower-6:
    • Conncetion of up to six 12V devices
      (6 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices)
  • MultiPower-2:
    • Conncetion of up to two 12V devices
      (2 output interfaces supply G&D devices with 12V and max. 1.5A – depends on the devices)
GeneralProduct group Accessories
Product Family MultiPower
Power Supply Redundancy without load balancing
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 436 mm
Height ca. 44 mm
Depth ca. 155 mm
IP protection class IP20
Weight ca. 1.57 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 120,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 2
Type External
Input voltage 24 VDC
Current consumption 4 A
Power consumption max. 96 W
Heat output max. 8.6 W

Product comparison

Technical data
MultiPower-6 6x 12V/1.2A
Item no. A4110032
selected variant
MultiPower-6-24V 6x 12V/1.2A
Item no. A4110045
GeneralGeneral
General Product group
Product group
Accessories
Product group
Accessories
Product Family
Product Family
MultiPower
Product Family
MultiPower
KVM matrix system component
KVM matrix system component
Not specified
KVM matrix system component
Not specified
Power Supply
Power Supply
Redundancy without load balancing
Power Supply
Redundancy without load balancing
MaintenanceMaintenance
Maintenance Update via
Update via
Update Wizard (service interface)
Update via
Update Wizard (service interface)
Serviceport settings
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
HousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Width ca.
Width ca.
436 mm
Width ca.
436 mm
Height ca.
Height ca.
44 mm
Height ca.
44 mm
Depth ca.
Depth ca.
155 mm
Depth ca.
155 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
Weight ca.
Weight ca.
1.91 kg
Weight ca.
1.57 kg
Operating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity, non-condensing
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Area of application
Area of application
Indoor use
Area of application
Indoor use
Maximum operating altitude above sea level
Maximum operating altitude above sea level
3,000 m
Maximum operating altitude above sea level
3,000 m
Storage temperature
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage air humidity, non-condensing
Storage air humidity, non-condensing
15 % to 85 %
Storage air humidity, non-condensing
15 % to 85 %
MTBF
MTBF
120,000 h at 25°C
MTBF
120,000 h at 25°C
Conformities
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyPower supply
Power supply Quantity
Quantity
2
Quantity
2
Type
Type
Internal
Type
External
Input voltage
Input voltage
100-240 VAC
Input voltage
24 VDC
Input frequency
Input frequency
60-50 Hz
Input frequency
Not specified
Current consumption
Current consumption
1.2-0.5 A
Current consumption
4 A
Power consumption max.
Power consumption max.
96 W
Power consumption max.
96 W
Heat output max.
Heat output max.
8.6 W
Heat output max.
8.6 W
