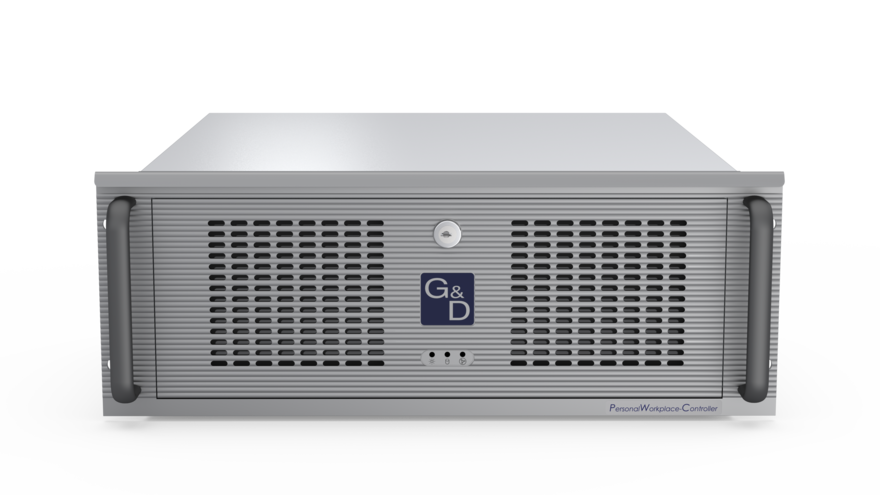

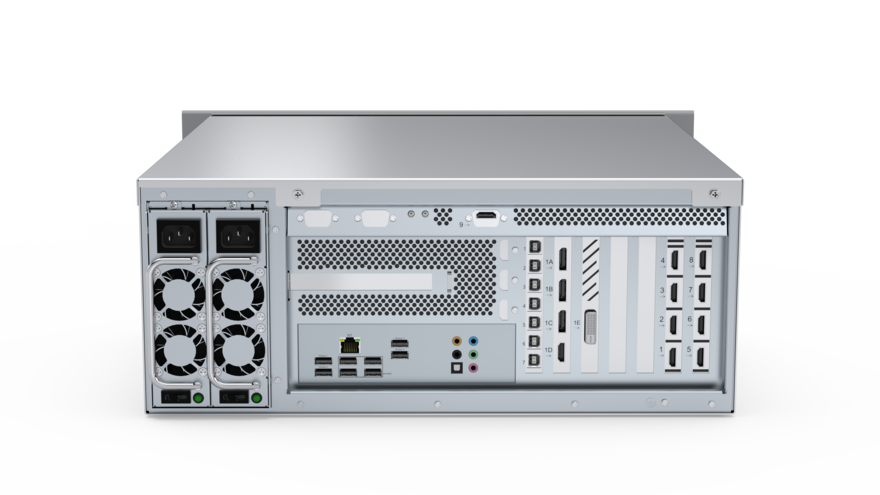

is a powerful independent multi-viewing tool with up to 27 physical video inputs, up to 5 video stream inputs and up to 6 video outputs as well as up to 2 video stream outputs. Physical video inputs, such as computers or KVM modules, are connected via standard interfaces, while video streams are integrated via the network. The device enables the simultaneous display of several sources on one or more monitors and, depending on the variant, their operation and output via video stream. The arrangement and size of the windows can be flexibly adjusted within the display area, enabling efficient and ergonomic workplace design with just one mouse and keyboard.
| General | Product group |
Video processing |
|---|---|---|
| Product Family |
PersonalWorkplace-Controller | |
| Number of sources |
9 | |
| Power Supply |
Redundancy with load balancing | |
| Input options | USB mouse |
yes |
| USB keyboard |
yes | |
| Video input 1 | Quantity |
1 |
| Format |
HDMI 2.0 | |
| Pixel rate ca. |
16 MPixel/s to 550 MPixel/s | |
| Exemplary resolutions |
3840 × 2160 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Related to Inputs |
1 | |
| Video input 2 | Quantity |
3 |
| Format |
HDMI 2.0 | |
| Pixel rate ca. |
16 MPixel/s to 300 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Related to Inputs |
2 3 4 | |
| Video input 3 | Quantity |
1 |
| Format |
HDMI 2.0 | |
| Pixel rate ca. |
16 MPixel/s to 165 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Related to Inputs |
9 | |
| Video input 4 | Quantity |
4 |
| Format |
HDMI 2.0 (DVI) | |
| Pixel rate ca. |
16 MPixel/s to 165 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Related to Inputs |
5 6 7 8 | |
| Video output 1 | Quantity |
1 |
| Format |
HDMI 2.0 | |
| Pixel rate ca. |
0 MPixel/s to 600 MPixel/s | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video output 2 | Quantity |
3 |
| Format |
DisplayPort 1.2 | |
| Pixel rate ca. |
0 MPixel/s to 600 MPixel/s | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video output 3 | Quantity |
1 |
| Format |
DualLink DVI | |
| Pixel rate ca. |
0 MPixel/s to 330 MPixel/s | |
| Exemplary resolutions |
2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Network | Quantity |
1 |
| Medium |
CAT5 CAT6 CAT7 | |
| Data rate |
1 Gbit/s 100 Mbit/s 10 Mbit/s | |
| Maintenance | Update via |
WebIF (Network) |
| Housing | Material |
Steel sheet |
| Width ca. |
483 mm | |
| Height ca. |
177 mm | |
| Depth ca. |
450 mm | |
| IP protection class |
IP20 | |
| Operating conditions | Operating temperature |
5 °C to 40 °C |
| Operating air humidity, non-condensing |
10 % to 80 % | |
| Area of application |
Indoor use | |
| Maximum operating altitude above sea level |
3,000 m | |
| Storage temperature |
-20 °C to 70 °C | |
| Storage air humidity, non-condensing |
10 % to 95 % | |
| MTBF |
38,900 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) UL compliant (see downloads) CB compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Quantity |
2 |
| Type |
Internal | |
| Input voltage |
90-264 VAC | |
| Input frequency |
47-63 Hz | |
| Current consumption |
5-2.5 A |
