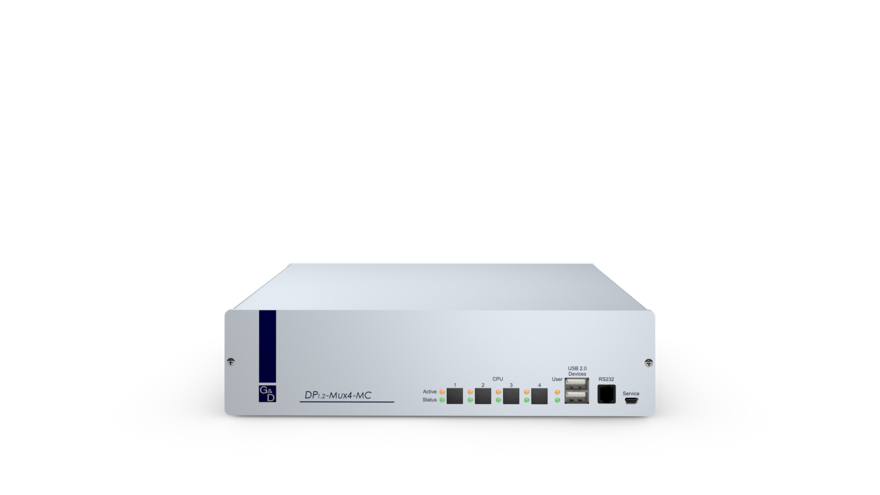

DP1.4-MUX4-MC2-USB

Item no. A2100174
Back to last view
Displayport™ 1.45KUncompressed4 computersAnalogEmbeddedUSBInternal power supplyLocal workspace
KVM switch to operate up to 4 computers with 2 DisplayPort1.4 interfaces each via one console
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The KVM switch DP1.4-MUX4

lets you operate up to four computers with DisplayPort 1.4 via one workplace. Switching between computers is done either via the push buttons on the front panel, configurable key combinations or a serial device.

Video
  • EDID data utilization from the workplace monitor
  • Resolution up to
    7680 × 4320 @ 30 Hz,
    5120 × 2880 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
  • Resolution up to
    7680 × 4320 @ 30 Hz,
    5120 × 2880 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
Signals
  • Bidirectional audio signals (stereo)
  • Embedded stereo audio (DisplayPort Digital, LPCM 2/4/6/8 channels)
  • USB 2.0 with full speed, all USB classes
Device

  • Access to standard interfaces of the computer, with no software installation required

  • Internal power pack for main power supply
  • MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
System update
  • Flash upgrade via the device
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Operation features
  • Ready for operation out of the box, no additional configuration required
  • Permanent keyboard/mouse emulation ensures a stable system
Control options
  • With the OperatorPanel, you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space.
GeneralProduct group KVM switches
Product Family DP1.4-MUX
Number of workstations 1
Number of sources 4
Input optionsUSB mouse yes
USB keyboard yes
PS/2 mouse no
PS/2 keyboard no
Video inputQuantity 4
Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to 1080 MPixel/s
Vertical frequency 20 Hz to 240 Hz
Horizontal frequency 25 kHz to 390 kHz
Exemplary resolutions 7680 × 4320 (30 Hz)
5120 × 2880 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (120 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (240 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Extended Display Identification Data (EDID)
Display Data Channel Command Interface (DDC/CI)
Display Data Channel (DDC)
Video outputQuantity 2
Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to 1080 MPixel/s
Vertical frequency 20 Hz to 240 Hz
Horizontal frequency 25 kHz to 390 kHz
Exemplary resolutions 7680 × 4320 (30 Hz)
5120 × 2880 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (120 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (240 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Extended Display Identification Data (EDID)
Display Data Channel Command Interface (DDC/CI)
Display Data Channel (DDC)
Audio 1Transmission type Bidirectional
Stereo
Resolutions 24 bit digital
Sampling rate up to 96 kHz
Bandwidth 22 kHz
Audio support Analog
Audio 2Transmission type LPCM (2/4/6/8 channels)
Stereo
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 32 kHz
up to 44.1 kHz
up to 48 kHz
up to 88.2 kHz
up to 96 kHz
up to 176.4 kHz
up to 192 kHz
Audio support Digital Embedded
USBSeparate USB transmission port no
Specification USB 2.0
Transmission rate max. 16 Mbit/s (Full Speed)
USB classes All
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 270 mm
Height ca. 66 mm
Depth ca. 210 mm
IP protection class IP20
Weight ca. 1.63 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 200,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.4-0.2 A
Power consumption max. 15 W
Heat output max. 6 W
