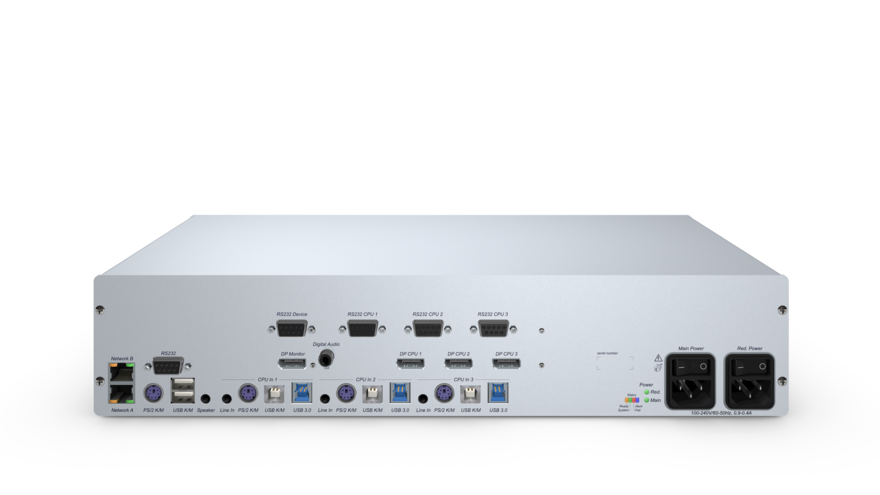

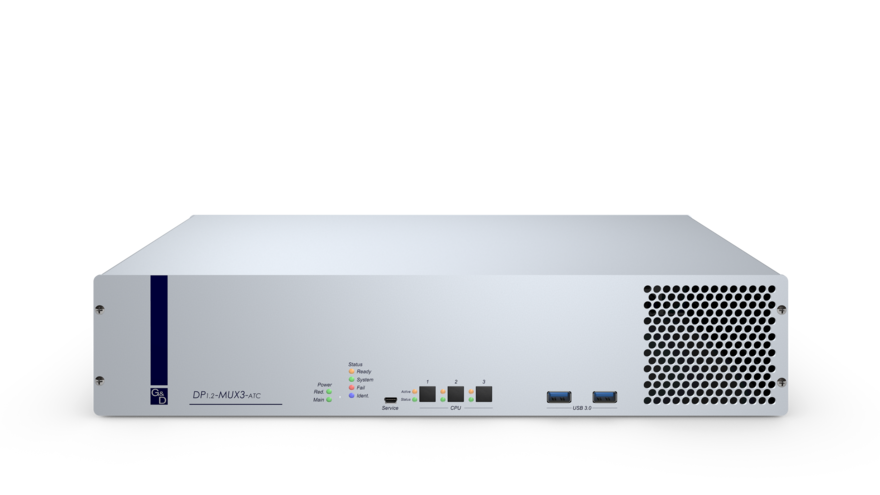

lets you operate up to three computers with DisplayPort 1.2 via one workplace. Thanks to the newly developed instant switching technology, the switching process between computers is done in real time. Switching between computers is done either via the push buttons on the front panel, configurable key combinations, the integrated EasyControl tool, XML remote control via API and SNMP, or an additional serial device via the RS232 interface. You can use various Monitoring & SNMP features via the network interfaces. These can also be used to configure the device via the Config Panel.
Access to standard interfaces of the computer, with no software installation required
| General | Product group |
KVM switches |
|---|---|---|
| Product Family |
DP1.2-MUX3-ATC | |
| Number of workstations |
1 | |
| Number of sources |
3 | |
| Power Supply |
Redundancy without load balancing | |
| Input options | USB mouse |
yes |
| USB keyboard |
yes | |
| PS/2 mouse |
yes | |
| PS/2 keyboard |
yes | |
| Video input | Quantity |
2 |
| Format |
DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST)) | |
| Colour depth |
24 bit | |
| Pixel encoding |
RGB 4:4:4 (24 bpp / 8 bpc) | |
| Pixel rate ca. |
0 MPixel/s to 600 MPixel/s | |
| Vertical frequency |
24 Hz to 240 Hz | |
| Horizontal frequency |
25 kHz to 295 kHz | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported industry standards |
Display Data Channel Command Interface (DDC/CI) | |
| Video output | Quantity |
2 |
| Format |
DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST)) | |
| Colour depth |
24 bit | |
| Pixel encoding |
RGB 4:4:4 (24 bpp / 8 bpc) | |
| Pixel rate ca. |
0 MPixel/s to 600 MPixel/s | |
| Vertical frequency |
24 Hz to 240 Hz | |
| Horizontal frequency |
25 kHz to 295 kHz | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) | |
| General Notes |
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported industry standards |
Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID) | |
| Audio 1 | Transmission type |
Unidirectional |
| Resolutions |
24 bit 20 bit 16 bit | |
| Sampling rate |
up to 48 kHz | |
| Audio support |
Digital Embedded | |
| Audio 2 | Transmission type |
Stereo Transparent |
| Resolutions |
24 bit digital | |
| Sampling rate |
up to 96 kHz | |
| Bandwidth |
22 kHz | |
| Audio support |
Analog | |
| USB | Separate USB transmission port |
no |
| Specification |
USB 3.1 Gen 1 | |
| Transmission rate |
max. 5,000 Mbit/s (SuperSpeed) | |
| Power (output) |
900 mA (HighPower) | |
| USB classes |
All | |
| Serial | Standard |
RS232 |
| Transparent transmission |
yes | |
| Data rate |
max. 115,200 bps | |
| Signals |
TxD RxD DTR DSR RTS CTS | |
| Network | Quantity |
2 |
| Medium |
CAT5 CAT6 CAT7 | |
| Data rate |
10 Mbit/s 100 Mbit/s 1 Gbit/s | |
| Maintenance | Update via |
ConfigPanel (Network) |
| Serviceport settings |
115200bps (8/N/1) | |
| Housing | Material |
anodised aluminium |
| Width ca. |
436 mm | |
| Height ca. |
88 mm | |
| Depth ca. |
210 mm | |
| IP protection class |
IP20 | |
| Weight ca. |
3.15 kg | |
| Operating conditions | Operating temperature |
5 °C to 45 °C |
| Operating air humidity, non-condensing |
20 % to 80 % | |
| Storage temperature |
-20 °C to 55 °C | |
| Storage air humidity, non-condensing |
15 % to 85 % | |
| MTBF |
110,000 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Quantity |
2 |
| Type |
Internal | |
| Input voltage |
100-240 VAC | |
| Input frequency |
60-50 Hz | |
| Current consumption |
0.9-0.4 A | |
| Power consumption idle |
23.4-23 W | |
| Power consumption max. |
46.6-45.9 W | |
| Heat output idle |
22.4-22 W | |
| Heat output max. |
29.15-28.55 W |
