VisionVS-Fiber(M)

Item no. A1110804

Back to last view

New

Hybrid computer module to extend DisplayPort signals with G&D KVM matrix (fiber) and simultaneous streaming to VuWall PAK devices (CAT)

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

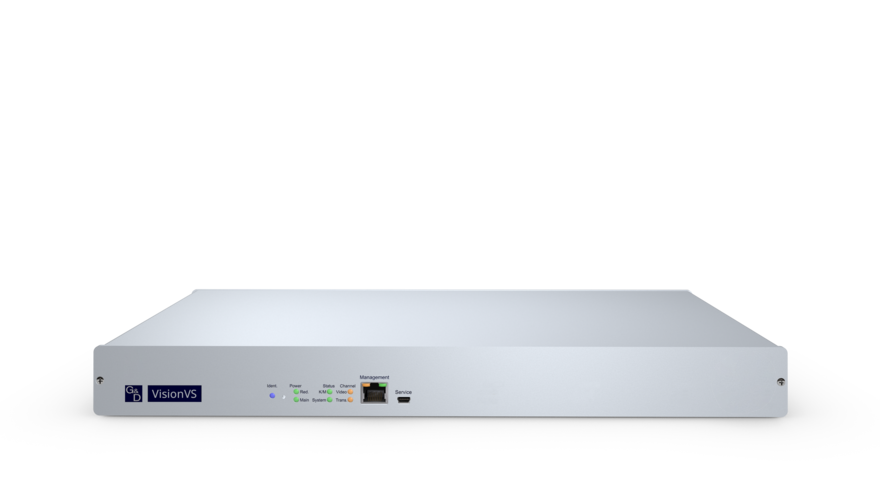

The VisionVS is a hybrid computer module featuring a dual encoder

that transmits KVM signals with virtually zero latency and lossless quality via a dedicated G&D KVM matrix to the workplace. At the same time, it enables remote access to the computer via web interface or low-latency streaming to VuWall PAK devices for flexible video wall management.

Video

bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.

The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)

Resolution up to
2560 × 1600 @ 60 Hz,
4096 × 2160 @ 30 Hz

Resolution up to
2560 × 1600 @ 60 Hz,
4096 × 2160 @ 30 Hz

Signals

Embedded stereo audio (2 channel LPCM)

Transmission

The transmission distance is up to 400 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)

Internal power pack for main power supply

Operation features

Video wall processing and KVM combined in one appliance
The combination of powerful image processing and KVM functionality reduces the number of required devices.

Direct streaming to G&D KVM matrix systems and VuWall PAK nodes
Flexible use in hybrid environments with both centralized and decentralized access to computing resources.

Reduced system complexity, lower cabling effort, and minimal rack space requirements
A more efficient infrastructure with fewer hardware components saves costs, conserves space, and simplifies installation.

Transmission

A VuWall TRx appliance with version 3.11 or higher is required for the VuWall streaming application.

Device

External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply

System expansion

You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.

General	Product group	KVM extenders KVM matrix systems
Input options	USB mouse	yes
Input options	USB keyboard	yes
Transmission	Number of transmission channels	1
	Redundant transmission channels	no redundant KVM transmission
	Range	100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	850 nm
	KVM matrix system component	Computer module
	Medium	Fiber MM
	Data rate	2.5 Gbit/s
Video input	Number of video channels	1
	Format	DisplayPort 1.1 (HBR)
	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 300 MPixel/s
	Vertical frequency	24 Hz to 120 Hz
	Horizontal frequency	25 kHz to 185 kHz
	Exemplary resolutions	4096 × 2160 (30 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (24 Hz) 3840 × 2160 (30 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (24 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)
Video output	Number of video channels	1
	Format	HDMI 1.4
	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 297 MPixel/s
	Exemplary resolutions	4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Audio	Transmission type	Stereo 2-channel LPCM
	Resolutions	16 bit
	Sampling rate	up to 48 kHz
	Audio support	Digital Embedded
Network	Medium 1	CAT5 CAT6 CAT7
Network	Data rate 1	10 MBit/s 100 MBit/s
Network 2	Medium 1	CAT5 CAT6 CAT7
Network 2	Data rate 1	1 GBit/s 100 MBit/s 10 MBit/s
Maintenance	Update via	WebIF (Network)
Housing	Material	anodised aluminium
	Width	ca. 436 mm
	Height	ca. 44 mm
	Depth	ca. 284 mm
	IP protection class	IP20
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 60 °C
	Storage air humidity	15 % to 85 %, non-condensing
Power supply	Input voltage	100-240 VAC
Power supply	Input frequency	60-50 Hz
Power supply 2	Input voltage	12 VDC

Product comparison

Mark differences Hide same values

Technical data		VisionVS-CAT Item no. A1110803	selected variant VisionVS-Fiber(M) Item no. A1110804	VisionVS-Fiber(S) Item no. A1110805	VisionVS-Fiber(S+) Item no. A1110806

		General	General	General	General
General	Product group	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems

		Input options	Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes
Input options	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes

		Transmission	Transmission	Transmission	Transmission
Transmission	Number of transmission channels	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 1
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission
	Range	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 5000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)
	Laser class	Laser class Not specified	Laser class Class 1	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface Not specified	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength Not specified	Wavelength 850 nm	Wavelength 1310 nm	Wavelength 1310 nm
	KVM matrix system component	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module
	Medium	Medium CAT5e CAT6 CAT7	Medium Fiber MM	Medium Fiber SM	Medium Fiber SM+
	Data rate	Data rate 1 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		Video input	Video input	Video input	Video input
Video input	Number of video channels	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1
	Format	Format DisplayPort 1.1 (HBR)	Format DisplayPort 1.1 (HBR)	Format DisplayPort 1.1 (HBR)	Format DisplayPort 1.1 (HBR)
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 300 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 300 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 300 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 300 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz
	Exemplary resolutions	Exemplary resolutions 4096 × 2160 (30 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (24 Hz) 3840 × 2160 (30 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (24 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (30 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (24 Hz) 3840 × 2160 (30 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (24 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (30 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (24 Hz) 3840 × 2160 (30 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (24 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (30 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (24 Hz) 3840 × 2160 (30 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (24 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)

		Video output	Video output	Video output	Video output
Video output	Number of video channels	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1
	Format	Format HDMI 1.4	Format HDMI 1.4	Format HDMI 1.4	Format HDMI 1.4
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 297 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 297 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 297 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 297 MPixel/s
	Exemplary resolutions	Exemplary resolutions 4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.

		Network	Network	Network	Network
Network	Medium 1	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7
Network	Data rate 1	Data rate 1 10 MBit/s 100 MBit/s	Data rate 1 10 MBit/s 100 MBit/s	Data rate 1 10 MBit/s 100 MBit/s	Data rate 1 10 MBit/s 100 MBit/s

		Network 2	Network 2	Network 2	Network 2
Network 2	Medium 1	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7
Network 2	Data rate 1	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s

		Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via WebIF (Network)	Update via WebIF (Network)	Update via WebIF (Network)	Update via WebIF (Network)

		Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm
	Height	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm
	Depth	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20

		Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C
	Storage air humidity	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing

		Power supply	Power supply	Power supply	Power supply
Power supply	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC
Power supply	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz

		Power supply 2	Power supply 2	Power supply 2	Power supply 2
Power supply 2	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC

		Audio	Audio	Audio	Audio
Audio	Transmission type	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM
	Resolutions	Resolutions 16 bit	Resolutions 16 bit	Resolutions 16 bit	Resolutions 16 bit
	Sampling rate	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz
	Audio support	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded

Interfaces

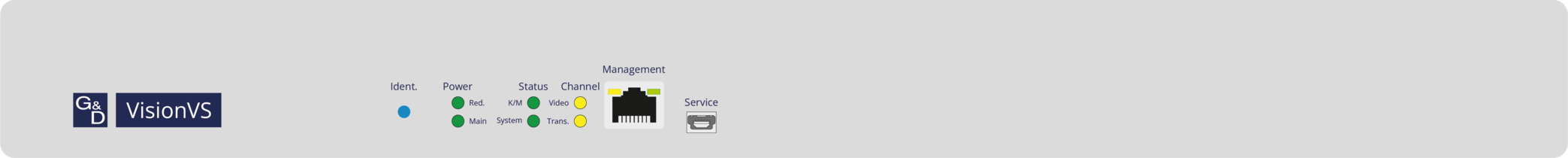

Aperture designation	Design	Description
Network Management	RJ45 socket	Port for IP network
Service	Mini-USB socket	Port for service purposes

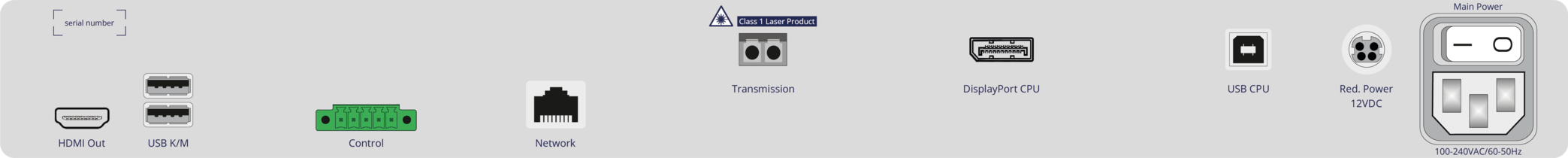

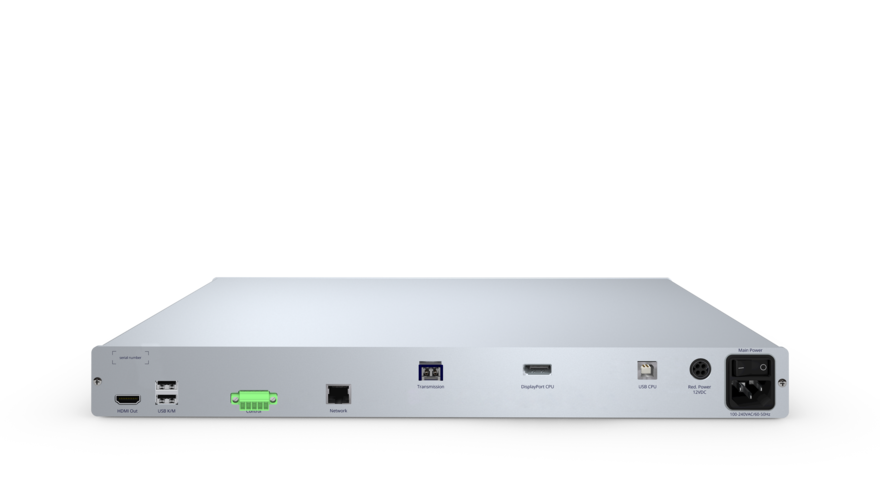

Aperture designation	Design	Description
HDMI Out	HDMI socket	Port for monitor
USB K/M	USB-A socket 2.0	Port for keyboard and mouse
Control	Clamp block - 5 pins	Port for external remote control
Network	RJ45 socket	Port for IP network
Transmission	SC-Duplex socket	Data transmission to console module or matrix switch (FIBER)
DisplayPort CPU	DisplayPort socket	Connection to computer - Video
USB CPU	USB-B socket 2.0	Connection to computer - USB
Red. Power 12VDC	Mini-DIN 4 socket	Power supply DC redundant
Main Power	IEC plug 320 C14	Power supply AC
