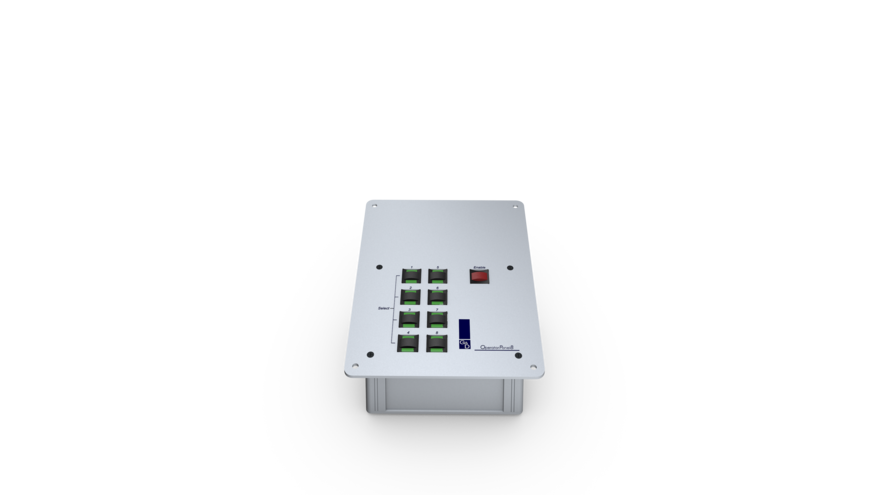

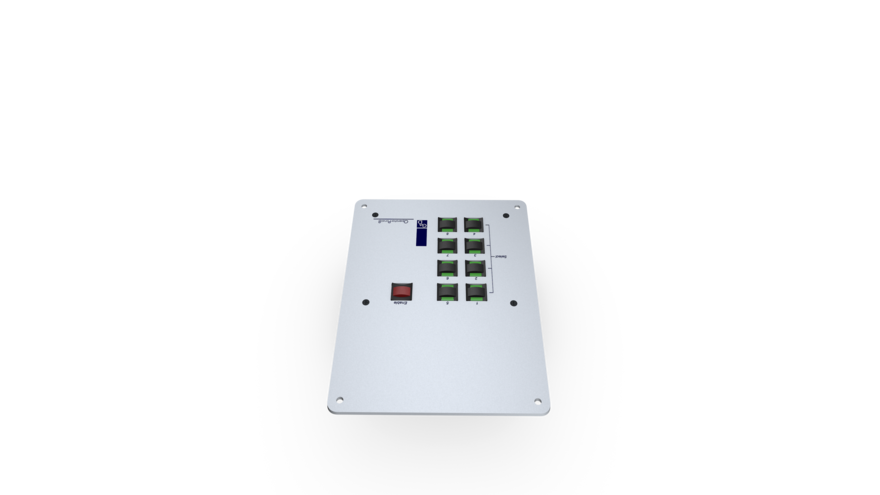

you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space. To switch between channels, press the "Enable" button and the channel button at the same time. Pressing two buttons at the same time will prevent you from switching between channels by accident.
| General | Product group |
KVM add-ons |
|---|---|---|
| Product Family |
OperatorPanel | |
| Power Supply |
no redundancy | |
| Maintenance | Update via |
Update Wizard (service interface) |
| Serviceport settings |
115200bps (8/N/1) | |
| Housing | Material |
anodised aluminium |
| Width ca. |
143 mm | |
| Height ca. |
47 mm | |
| Depth ca. |
183 mm | |
| IP protection class |
IP20 | |
| Weight ca. |
0.42 kg | |
| Operating conditions | Operating temperature |
5 °C to 45 °C |
| Operating air humidity, non-condensing |
20 % to 80 % | |
| Area of application |
Indoor use | |
| Maximum operating altitude above sea level |
3,048 m | |
| Storage temperature |
-20 °C to 60 °C | |
| Storage air humidity, non-condensing |
15 % to 85 % | |
| MTBF |
100,000 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Quantity |
1 |
| Type |
External | |
| Input voltage |
12 VDC | |
| Current consumption |
0.1 A | |
| Power consumption idle |
0.1 W | |
| Power consumption max. |
1.2 W | |
| Heat output idle |
0.1 W | |
| Heat output max. |
1.2 W |
