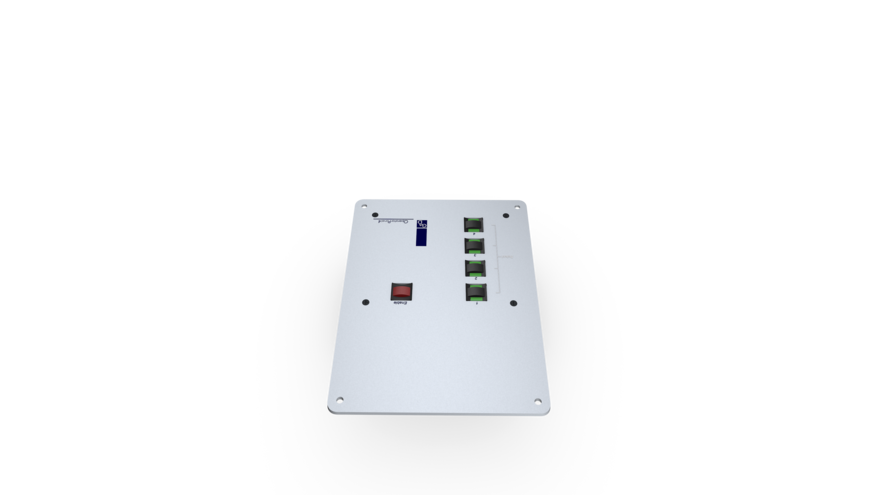

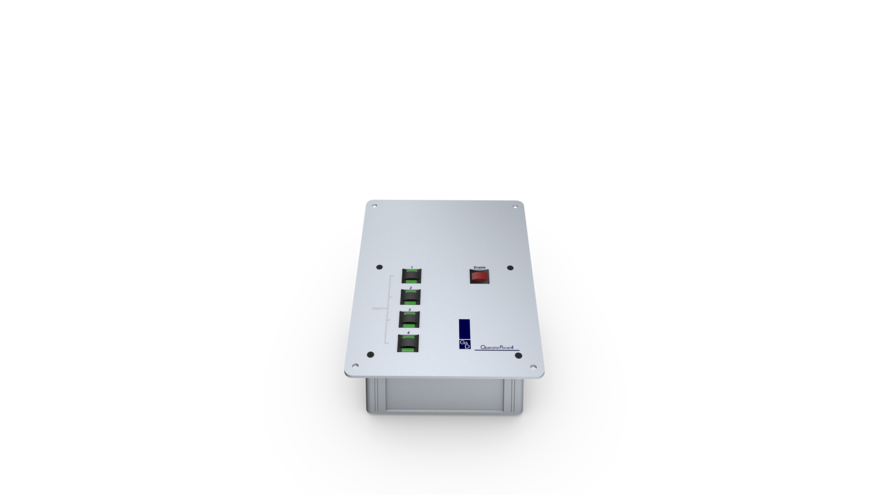

OperatorPanel-4-DM Deskmount

Item no. A3200025
Back to last view
Add-on for external switching of up to 4 channels of a compatible G&D device
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

With the OperatorPanel,

you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space. To switch between channels, press the "Enable" button and the channel button at the same time. Pressing two buttons at the same time will prevent you from switching between channels by accident.

Device
  • OperatorPanel-2: Switching of two channels of the following KVM switches:
    • DP1.4-MUX2-NT variants
    • DP1.4-MUX2 variants
    • DL-DVI-MUX2-NT variants
    • DL-MUX2 variants
    • TradeSwitch2 variants
  • OperatorPanel-4: Switching of up to four channels of the following KVM switches:
    • DP1.4-MUX4 variants
    • DP1.2-MUX3-ATC variants
    • DL-DVI-MUX4-NT variants
    • DVIMUX4-DL variants
    • DVIMUX4 variants
    • TradeSwitch4 variants
  • Serial interface to the KVM switch
  • The OperatorPanel is connected to a serial interface of the KVM switch from G&D.
  • External power supply
  • DM Deskmount variant: for table installation
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Security features
  • "Enable" key prevents accidental switching
Operation features
  • Switching by pressing a button
GeneralProduct group KVM add-ons
Product Family OperatorPanel
Power Supply no redundancy
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 143 mm
Height ca. 47 mm
Depth ca. 183 mm
IP protection class IP20
Weight ca. 0.41 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 100,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 1
Type External
Input voltage 12 VDC
Current consumption 0.1 A
Power consumption idle 0.1 W
Power consumption max. 1.2 W
Heat output idle 0.1 W
Heat output max. 1.2 W
