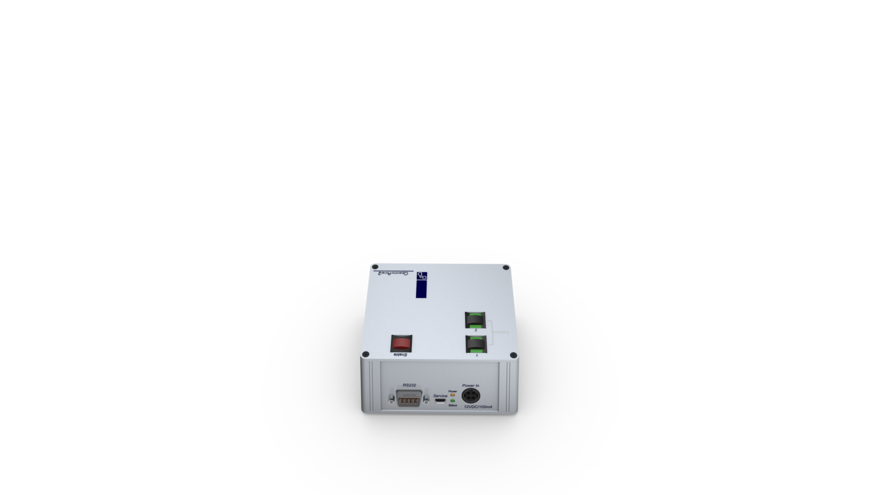

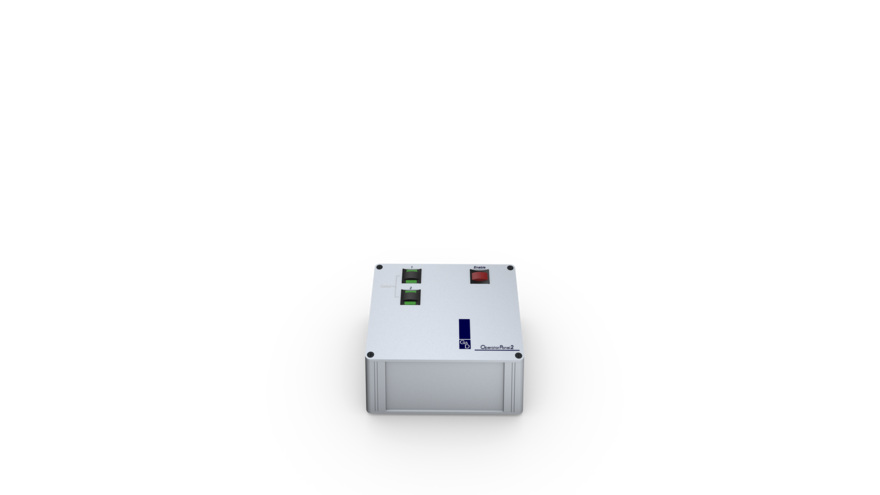

With the OperatorPanel,

you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space. To switch between channels, press the "Enable" button and the channel button at the same time. Pressing two buttons at the same time will prevent you from switching between channels by accident.

Device
  • OperatorPanel-2: Switching of two channels of the following KVM switches:
    • DP1.4-MUX2-NT variants
    • DP1.4-MUX2 variants
    • DL-DVI-MUX2-NT variants
    • DL-MUX2 variants
    • TradeSwitch2 variants
  • OperatorPanel-4: Switching of up to four channels of the following KVM switches:
    • DP1.4-MUX4 variants
    • DP1.2-MUX3-ATC variants
    • DL-DVI-MUX4-NT variants
    • DVIMUX4-DL variants
    • DVIMUX4 variants
    • TradeSwitch4 variants
  • Serial interface to the KVM switch
  • The OperatorPanel is connected to a serial interface of the KVM switch from G&D.
  • External power supply
  • DM Deskmount variant: for table installation
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Security features
  • "Enable" key prevents accidental switching
Operation features
  • Switching by pressing a button
GeneralProduct group KVM add-ons
Product Family OperatorPanel
Power Supply no redundancy
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 115 mm
Height ca. 47 mm
Depth ca. 93 mm
IP protection class IP20
Weight ca. 0.32 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 100,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 1
Type External
Input voltage 12 VDC
Current consumption 0.1 A
Power consumption idle 0.1 W
Power consumption max. 1.2 W
Heat output idle 0.1 W
Heat output max. 1.2 W

Product comparison

Technical data
selected variant
OperatorPanel-2 Desktop
Item no. A3200021
OperatorPanel-2-DM Deskmount
Item no. A3200023
GeneralGeneral
General Product group
Product group
KVM add-ons
Product group
KVM add-ons
Product Family
Product Family
OperatorPanel
Product Family
OperatorPanel
KVM matrix system component
KVM matrix system component
Not specified
KVM matrix system component
Not specified
Power Supply
Power Supply
no redundancy
Power Supply
no redundancy
MaintenanceMaintenance
Maintenance Update via
Update via
Update Wizard (service interface)
Update via
Update Wizard (service interface)
Serviceport settings
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
HousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Width ca.
Width ca.
115 mm
Width ca.
143 mm
Height ca.
Height ca.
47 mm
Height ca.
47 mm
Depth ca.
Depth ca.
93 mm
Depth ca.
183 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
Weight ca.
Weight ca.
0.32 kg
Weight ca.
0.4 kg
Operating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity, non-condensing
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Area of application
Area of application
Indoor use
Area of application
Indoor use
Maximum operating altitude above sea level
Maximum operating altitude above sea level
3,048 m
Maximum operating altitude above sea level
3,048 m
Storage temperature
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage air humidity, non-condensing
Storage air humidity, non-condensing
15 % to 85 %
Storage air humidity, non-condensing
15 % to 85 %
MTBF
MTBF
100,000 h at 25°C
MTBF
100,000 h at 25°C
Conformities
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyPower supply
Power supply Quantity
Quantity
1
Quantity
1
Type
Type
External
Type
External
Input voltage
Input voltage
12 VDC
Input voltage
12 VDC
Current consumption
Current consumption
0.1 A
Current consumption
0.1 A
Power consumption idle
Power consumption idle
0.1 W
Power consumption idle
0.1 W
Power consumption max.
Power consumption max.
1.2 W
Power consumption max.
1.2 W
Heat output idle
Heat output idle
0.1 W
Heat output idle
0.1 W
Heat output max.
Heat output max.
1.2 W
Heat output max.
1.2 W
