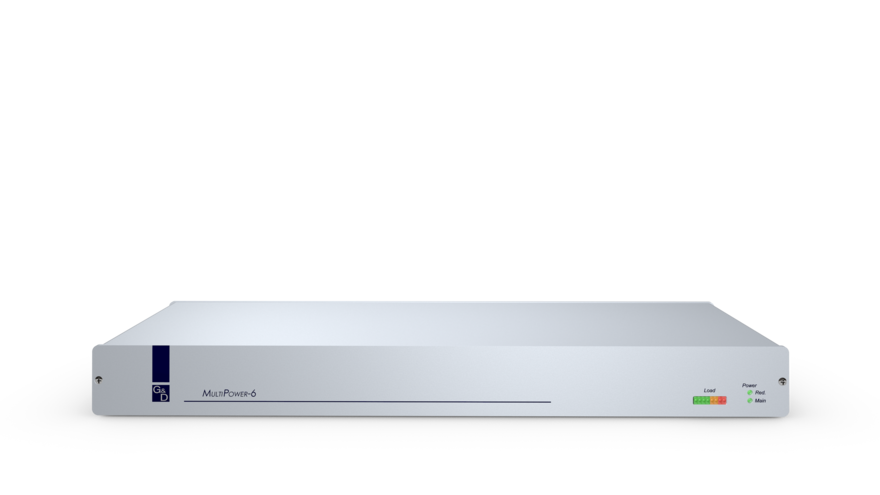

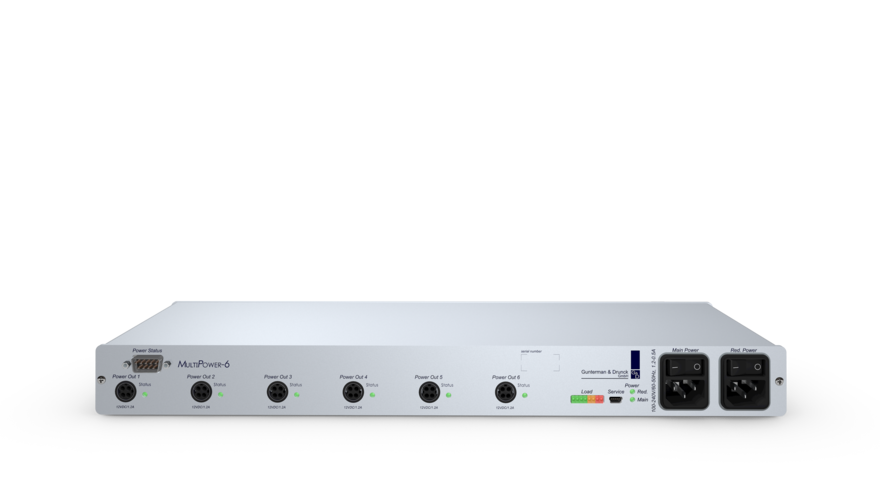

MultiPower-6 6x 12V/1.2A

Item no. A4110032

Back to last view

Central power supply for 6 12V devices with max. 1.2A each

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

This MultiPower

serves as the central power source of G&D devices that require an external power pack (12V). With the MultiPower, a redundant power supply can be ensured via two power supply units. The MultiPower is a functional, space-saving and secure solution for applications in server rooms or computer racks.

Device

Central power supply, for example in racks
Enables external monitoring of the device status

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Security features

MultiPower-12-HP, MultiPower-12 and MultiPower-6:
- redundant internal power units
24V variant:
- redundant external power supply, 3 pin Phoenix connector
  (PowerPacks not included in the scope of delivery)
MultiPower-2:
- redundant external power supply

Operation features

MultiPower-12-HP:
- Connction of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 1,2A – depends on the devices; with port configuration, up to six G&D devices with 12V and max. 2.4A (high power) can be connected)
- Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
MultiPower-12:
- Connection of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 600mA – depends on the devices)
MultiPower-6:
- Conncetion of up to six 12V devices
  (6 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices)
MultiPower-2:
- Conncetion of up to two 12V devices
  (2 output interfaces supply G&D devices with 12V and max. 1.5A – depends on the devices)

General	Product group	Accessories
	Product Family	MultiPower
	Power Supply	Redundancy without load balancing
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width ca.	436 mm
	Height ca.	44 mm
	Depth ca.	155 mm
	IP protection class	IP20
	Weight ca.	1.91 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Area of application	Indoor use
	Maximum operating altitude above sea level	3,000 m
	Storage temperature	-20 °C to 60 °C
	Storage air humidity, non-condensing	15 % to 85 %
	MTBF	120,000 h at 25°C
	Conformities	UKCA compliant (see downloads) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) CE compliant (see downloads) FCC compliant (see manual) EAC compliant (see downloads) IEC/EN 60945 - Maritime (EMC & Environmental)
Power supply	Quantity	2
	Type	Internal
	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	1.2-0.5 A
	Power consumption max.	96 W
	Heat output max.	8.6 W
